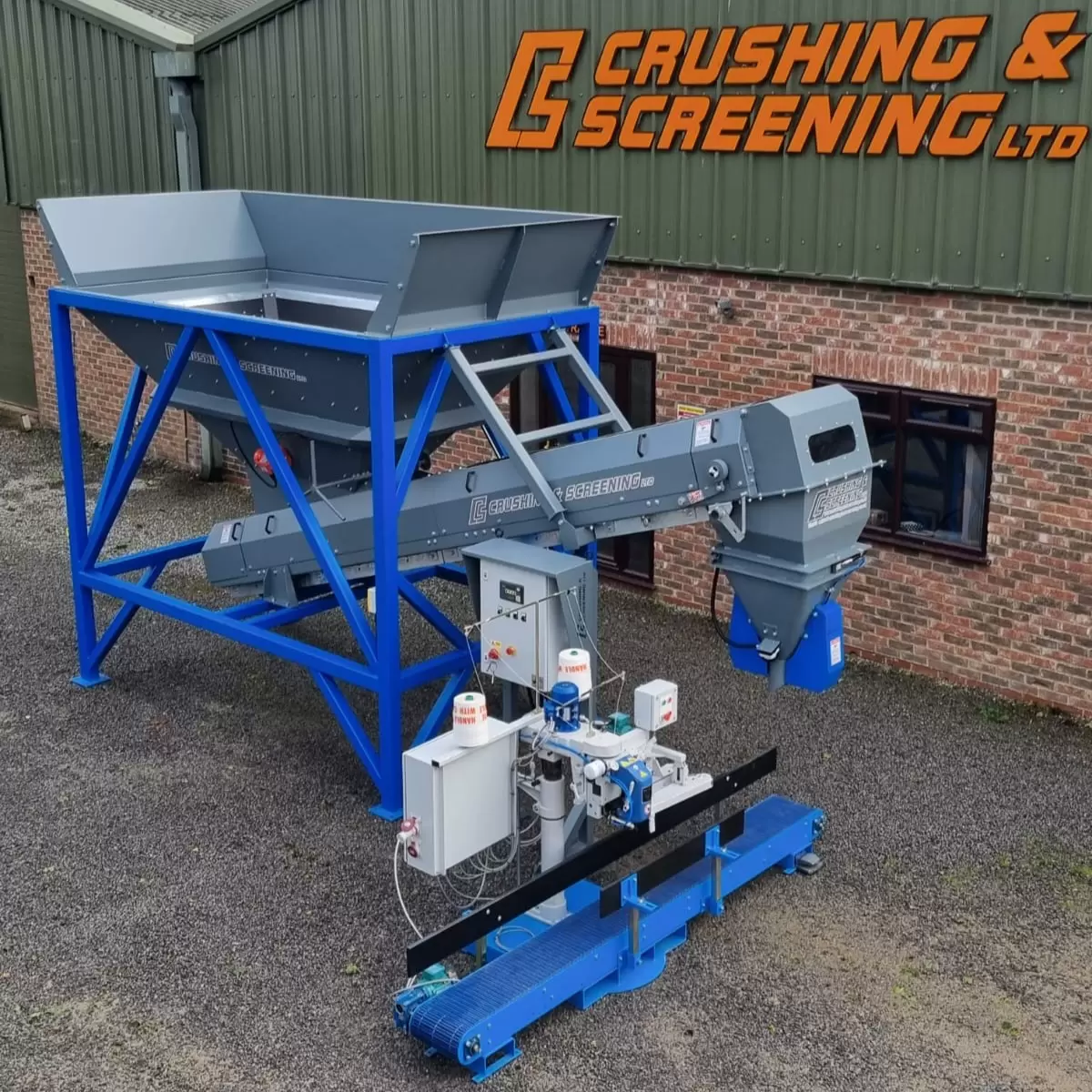

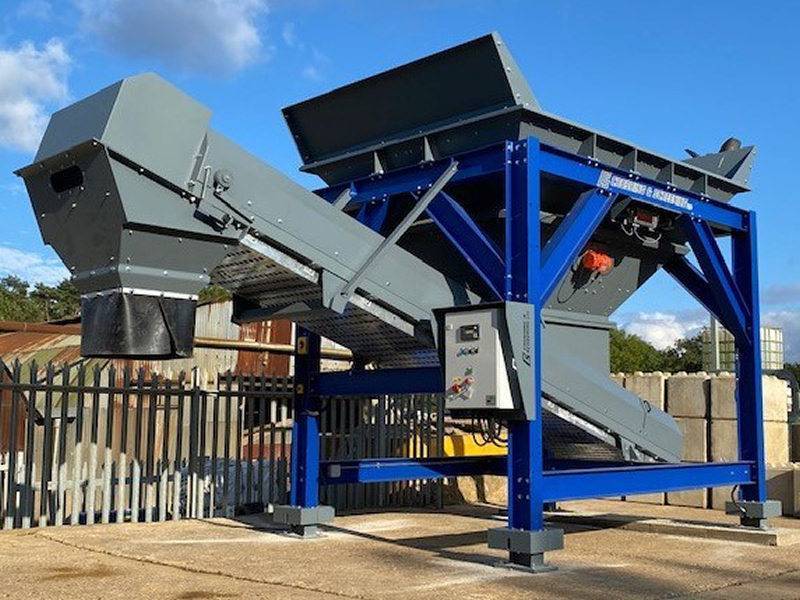

Bulk Bagging Machines & Bulk Bag Filling Systems

High-Speed Aggregate Bulk Bag Filling Equipment

Our industrial bagging machines are designed to handle diverse aggregate materials including sand, gravel, soil, compost, stone, bark, rock salt, coal, and wood pellets. With lightning-fast 10-20 second fill times per FIBC bag, our automated bag filling systems significantly outperform manual alternatives, delivering exceptional throughput for the most demanding production environments.

Key Performance Features

• Ultra-fast filling: 10-18 seconds per bulk bag (depending on material density)
• Large capacity hopper: Our large 10.3m³ hopper comes lined as standard in a high grade 10mm HDPE offering a longer life, aids material flow and reduction in noise whilst being filled and the large capacity reduces the refill frequency.
• Precision weighing: Integrated weighing systems ensure accurate fill weights
• Versatile operation: Optional bag types 4-loop and sleeved FIBC bags up to 2000kg
• Minimal waste: Precision filling minimizes material loss and maximizes profitability

Precision Weighing & Automated Bulk Bag Fillers

Our bulk bag filling machines feature state-of-the-art weighing systems that automatically stop filling once bags reach the desired weight or volume. This precision bagging technology eliminates human error, reduces material waste, and ensures consistent product quality across every bag filled.

Advanced Control Systems

Each FIBC filling machine includes intuitive operator controls and user-friendly interfaces. Optional features include soft start controls, inverter systems, remote operation capabilities, and integrated control panels that seamlessly integrate with existing production lines.

FIBC Filling Machine Specifications & Technical Details

Specification Details

• Fill Speed 10-20 seconds per bag
• Hopper Capacity 10.3m³ (fully lined in a high grade 10mm HDPE)
• Bag Weight Capacity Up to 2000kg depending on material.
• Conveyor Belt Width 800mm Heavy duty 500 3ply Vulcanised sealed edge belt.
• Construction Heavy-duty steel, suitable for abrasive materials.
• Installation Quick setup on customer-prepared base.

Bulk Bag Filling Process & Professional Installation

Simple 3-Step Filling Process

1. Bag Placement: Operator positions standard 4-looped or sleeved IBC bag onto the bag holder
2. Automated Filling: Single button from the remote or main panel, initiates filling sequence with automatic stop calculating the material inflight via integrated weighing
3. Bag Removal: Completed bag removed with forklift, process repeats immediately

Professional UK Installation Services

Our experienced technicians provide complete bulk bag filling machine installation across the UK. Each system is quickly installed onto your prepared base with minimal production disruption. We also provide comprehensive operator training and ongoing technical support to ensure optimal performance.

Industries Served by Our Industrial Bagging Systems

Our versatile bulk bag filling equipment serves diverse UK industries:

• Construction & Aggregates
• Sand, gravel, crushed stone, concrete aggregates
• Landscaping Supplies
• Topsoil, compost, bark mulch, decorative stone
• Agricultural Products
• Animal feed, grain, fertilizer, wood pellets
• Industrial Materials
• Rock salt, coal, minerals, recycled materials

Customizable Options for Your Bulk Bag Filling Requirements

Recognizing that every operation has unique requirements, our FIBC filling machines offer extensive customization options:

Available Upgrades & Options

• Conveyor Systems: 650mm or 800mm belt widths to optimize material flow
• Hopper Modifications: Fully lined HDPE hoppers for abrasive and corrosive materials
• Fill Speed Control: Variable speed controls and soft start systems
• Safety Features: Access ladders, platforms, and safety handrails
• Bag Handling: Multiple hanger options for loop or tunnel bags
• Control Systems: Separate or integral control panels with remote operation
• Custom Finishes: Painted to match your facility branding
• Bespoke Modifications: Custom additions designed for your specific requirements

Why Choose Our Bulk Bag Filling Machines?

Proven ROI Benefits

• Increased Productivity: Fill 100+ bags per hour vs 20-30 bags manually
• Reduced Labour Costs: Single operator replaces 3-4 manual workers
• Minimal Material Waste: Precision filling reduces costly over filled bags and increased profit.
• Enhanced Safety: Fully guarded along with an automated operation system provides a safer operator environment.
• Consistent Quality: Automated weighing brings a greater consistency and profitability.

Manufacturer Guarantee & Support

Every bulk bag filling machine is backed by Crushing & Screening Ltd’s comprehensive manufacturer guarantee. Our UK-based support team provides ongoing maintenance, spare parts, and technical assistance to maximize your equipment uptime.
